Name: PE Greenhouse Plastic Blown Film Extrusion Machine For Single Layer
Brand: SANBI
Price: 20000 USD

Brand Name : SANBI

Model Number : SJ-C75,90,105,120

Certification : CE , ISO9001

Place of Origin : CHINA

MOQ : 1 SET

Price : ( 20000USD - 70000USD ) / SET

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 25 SETS / MONTH

Delivery Time : Around 30 Days

Packaging Details : Standard wooden package

Color : Red / Green / Blue

Suit Max Film Size : 2500mm

Number of Layer : Single Layer

Standard Level : High Speed

After sale service : Avaliable

Contact Now

PE Greenhouse Plastic Blown Film Extrusion Machine For Single Layer

Description:

A	It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material.
B	The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
C	The screw and material barrel adopt 38 chrome- molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.

Technical Parameter:

Model	SJ-C75	SJ-C90	SJ-C105		SJ-C120
Screw Diameter	80mm	90mm	120mm	85mmx2	150mm	95mmX2
Screw Ratio(L/D)	28:1	28:1	28:1		28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min		10-100r/min
Power of Main Motor	37K	55kw	75kw	45kwX2	110kw	55kwX2
Main Output	90 kg /h	120kg /h	160 kg		200kg /h
Max. Folding Width of Film	1500mm	2000mm	2500mm		3000mm
Single-sided Thickness of Film	0.01 -0.08mm	0.01 -0.08mm	0.01 -0.08mm		0.01 -0.1mm
Total Power	66kw	100kw	130kw	145kw	180kw
Weight of Machine	4T	8T	10T		12T
Overall Dimensions	5200×2800 × 6000mm	6200×3400 × 8000mm	6200×4000 × 9000mm		6800×4500 × 10000mm

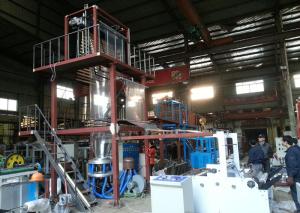

PIC. Description :
