Plastic Pe Blown Film Extrusion Machine / plastic Blowing Machinery

ZHEJIANG BANGTAI MACHINE CO.,LTD.
Contact Now

Plastic Pe Blown Film Extrusion Machine / plastic Blowing Machinery

  • 1
  • 2
  • 3

Brand Name : SANBI

Model Number : SJ-A50,55,65,70

Certification : CE , ISO9001

Place of Origin : CHINA

MOQ : 1 set

Price : 8000usd - 15000usd per set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 30 se / month

Delivery Time : around 30 days

Packaging Details : standard wooden package

Raw Material : LDPE,HDPE,LLDPE

Machine type : Extrusion blowing machine

Application : Packing bags for foodstuff,clothing,rubbish bag and vest ones

Color : Define by customer

Output : High

Contact Now

Plastic Pe Blown Film Extrusion Machine / plastic Blowing Machinery



Description:

A Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.
B Hence it is sound in hardness, durable in corrosion resistance.
C The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.
D It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE).
E It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Technical Parameter:

Model A50 A55 A65 A65-1
Diameter of screw φ50 φ55 φ65 φ65
Rcduced diameter of film(mm) 100-600 200-800 300-1000 400-1200
Single-face Thickness of film(mm) 0.01-0.10 0.01-0.10 0.01-0.10 0.01-0.10

Max.Extrusion(Kg/h)

35

50

65

80

L/D 28:1 28:1 28:1 28:1
Power of main moto(kw) 7.5-11 11-15 18.5-22 22
Power of Tracion main moto(kw) 1.1 1.1 1.5 1.5
Heating Power(kw) 11 13 19 21

Outline diameter(L x W x H) (mm)

4800 x 1900 x 3500 5500 x 2100 x 3800 6500 x 2300 x 4200 6500 x 2500 x 4800
Weight(T) 1.5T 2T 2.3T 2.6T

Questions of Customer:


Machine name

Specifications required

Film blowing machine

1.Max Film Width

2.Which kind of materials?

HDPE,LDPE,LLDPE,PP,PVC,EVA,etc

3.Required output ?

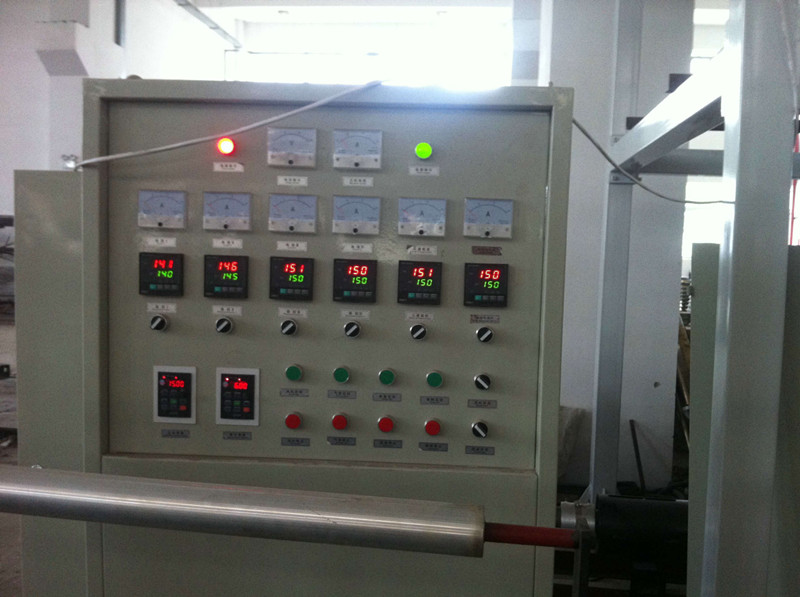

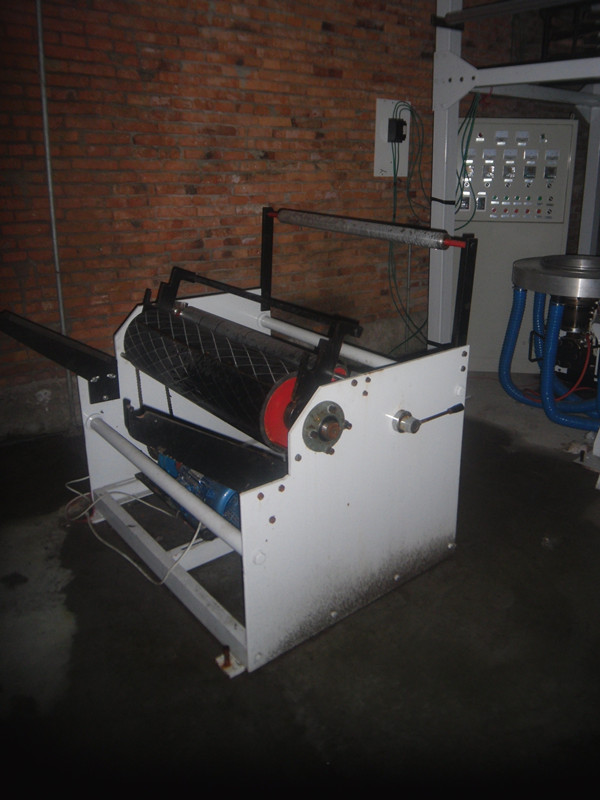

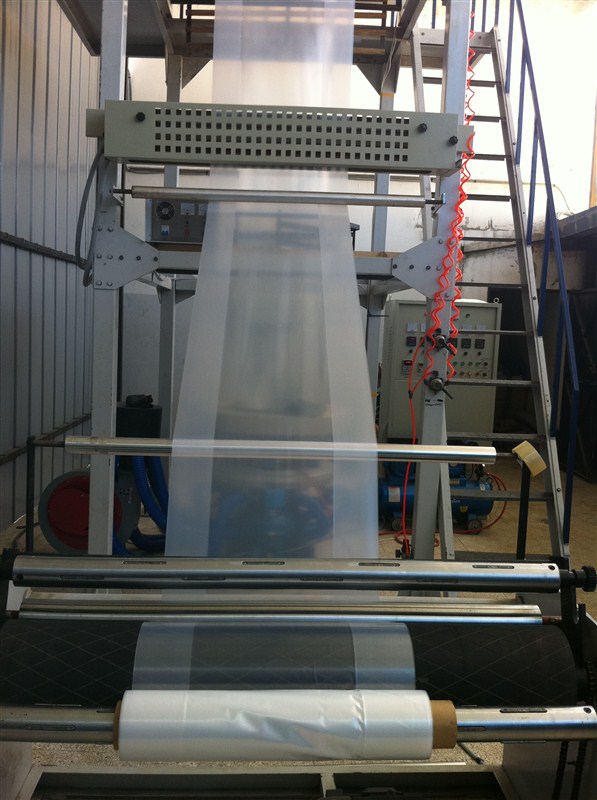

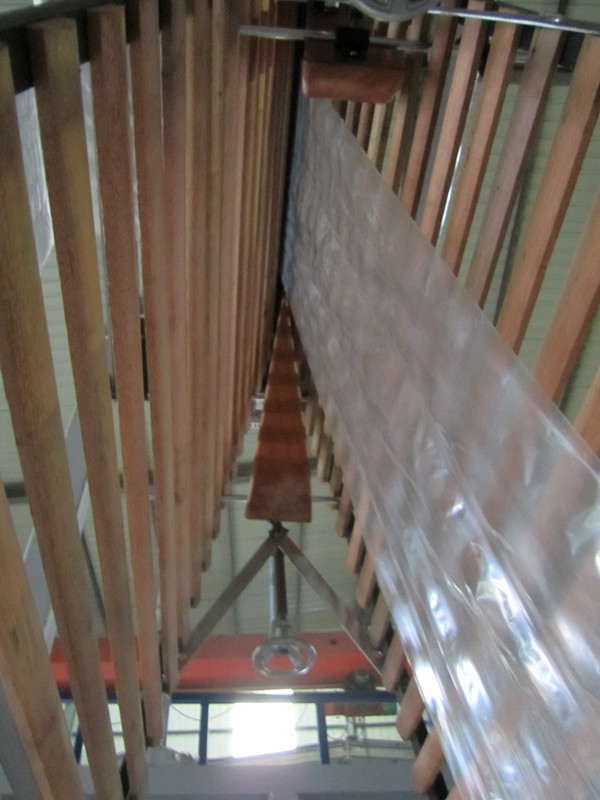

Picture description:

Plastic Pe Blown Film Extrusion Machine / plastic Blowing Machinery

Plastic Pe Blown Film Extrusion Machine / plastic Blowing Machinery

Plastic Pe Blown Film Extrusion Machine / plastic Blowing Machinery

Plastic Pe Blown Film Extrusion Machine / plastic Blowing Machinery
