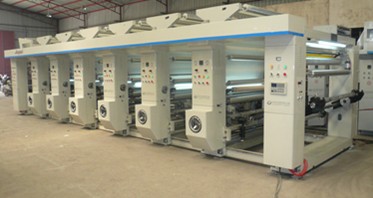

DFASY-61000 6 Colors Computer Printing Machine For Plastic Film (CE)
Quick Detail:
- Computer controlled rotogravure printing machine
- High speed 120m/min
1. ai Main parameter:
1. Printing colors: 6 color 8 groups
2. Max.width of printing material: 1030mm
3. Max. Printing width: 1000mm
4. Max. Mechanical speed: 120m/min.
5. Max. Printing speed:10-100m/min(varies according to the different printing
ink and the familiarity of the operator.etc).
6. The Max diameter of unwind and rewind: 600mm.
7. Diameter of printing cylinder: 100mm-320mm.
8. Precision of overprint: longitudinal register≤±0.15mm
Horizontal register≤±0.15mm
9. Diameter of web: 76mm (inner)*92mm (outer).
10. Main motor: frequency conversion motor 7.5KW
11. Machine power: 56kw
12. Overall dimension: 9500×2800×2520mm
13. Net weight: 11T
14. Printing material:
Non-woven
Cellophane: 20-30μm
PET: 12-60μm
PE: 40-80μm
OPP: 15-60 μm
BOPP: 15-60 μm
CPP: 15-60 μm
PVC:20-80μm
NY: 15-50μm
PAPER: 30-80gsm
Composite film: 15-60μm
And other film materials with the similar printing performance listed above.
Competitive Advantage:
A .The twenty-seven years experence to manufacture this machine
B. 30years professional engineers service in many countries,
C. Machines with quality guarantee for one year, life-long maintenance.
D. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc
E. Professional development group continuously improves and upgrades new products and new technologies .
F. Undertake various non-standard machinery, solve the customers' special requirements.
