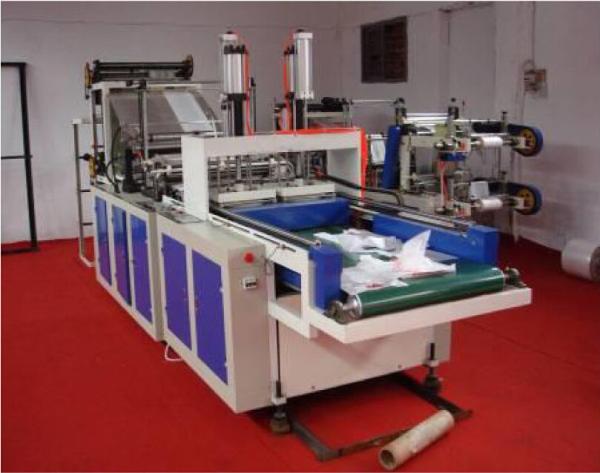

Cold Cutting T-shirt Bag Making Machine Double Deck Heat Sealing
Features:
1.Application materials :HDPE and LDPE film
2.Main drive: A.C moter + Inverter
3.Feeding motors:
a) Equipped with one set of step motor and driver , which can raise the production speed and provide accurate bag length control.
b) Equipped with two DC motors and photoelectrical eyse, which are for back film unwinding / back film feeding.
4.For bottom sealed bag, which is made from tube type film
5.Microcomputer control,with functions as bag length setting , display of cutting speed, counting of ready bags, shift between printed bag and non-printed bags, batch setting ,etc.
6.Unwinding section
a) Two unwinding stations to load two film rolls
b) Brake system for unwinding
c) Automatic tension system for unwinding
7.Bag making section
a) Machine has two deck

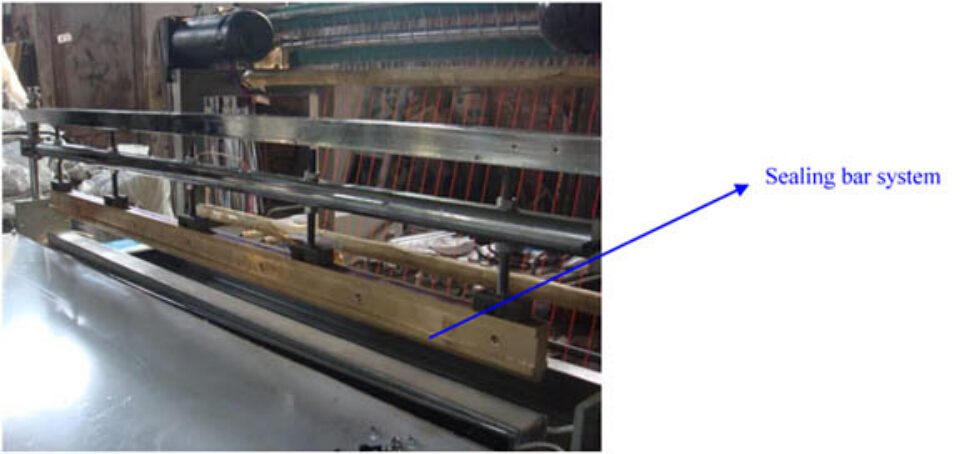

b) Equipped with two copper sealing bars. one is for up deck and the other is for down deck. the sealing bar is trunable to make two lines sealing or single line sealing.
c) Cold-cutting blades are spring-adjustable type
d) If making natural color bag without printed colors, it can 900mm wide * 2 or 450mm * 4 at the same time.
e) If making bag with printed colors, it can cut only one line at a time ,because machine equipped with one photocell and one feeding system.
f) Equipped with static-remover bar
g) Heating to sealing bar is controlled automatically
h) Equipped with one table to put the ready bags
Main Parameters
| Model | SHXJ-B1000 |
| description | Bottom sealed bag / t-shirt bag |
| bag making width | Max 900mm(two lines) ; Max 450mm(four lines) |
| bag making length | Max 1200mm |
| thickness of material film | 0.08mm-0.15mm(single sheet) |
| bag making lines | 1 printed bag ; 2 & 4 unprinted bag |
| bag making precision | around 0.2mm |
| bag making speed | 30-80 cycle / min / line (step motor) |
| Power | 6KW 220V ,50 HZ |
| Machine Weight | 1.8T |
| Overall Dimension(L*W*H) | 5000*1800*1600mm |
